J-pole antenna

The J-pole antenna consists of a short and a long vertical pole with a feed point near the bottom. The antenna looks like the letter J, hence the name J-pole antenna.

Formulas

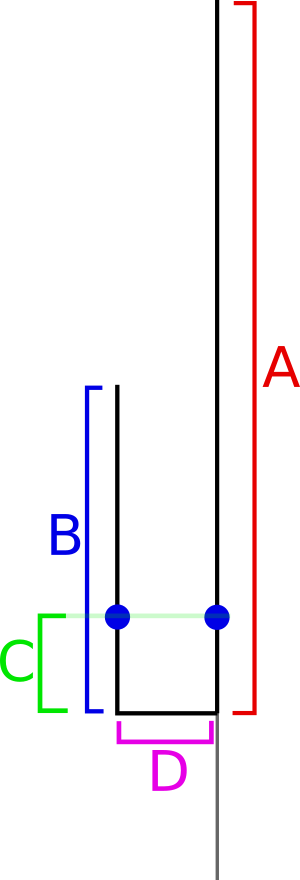

SchematicSchematic

l is the symbol for length and is measured in meter (m).
f is the frequency in megahertz (MHz).

Calculator
